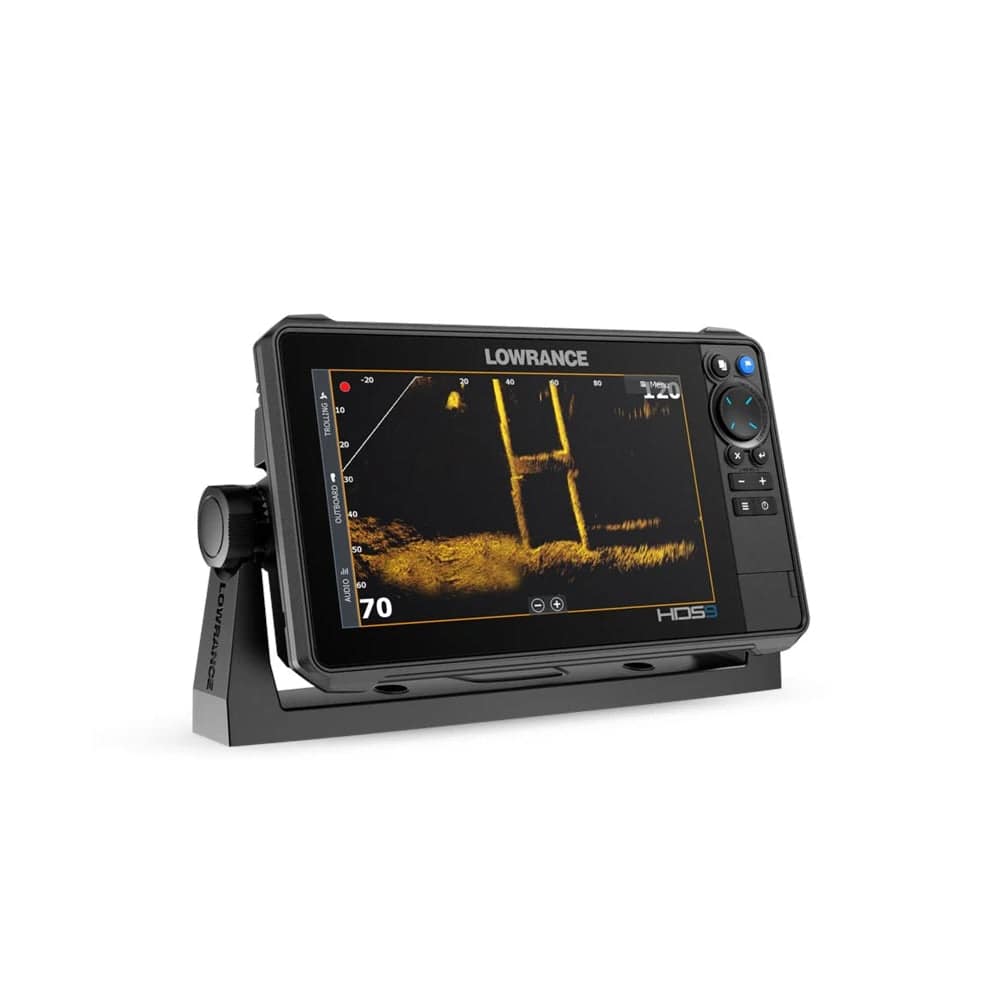

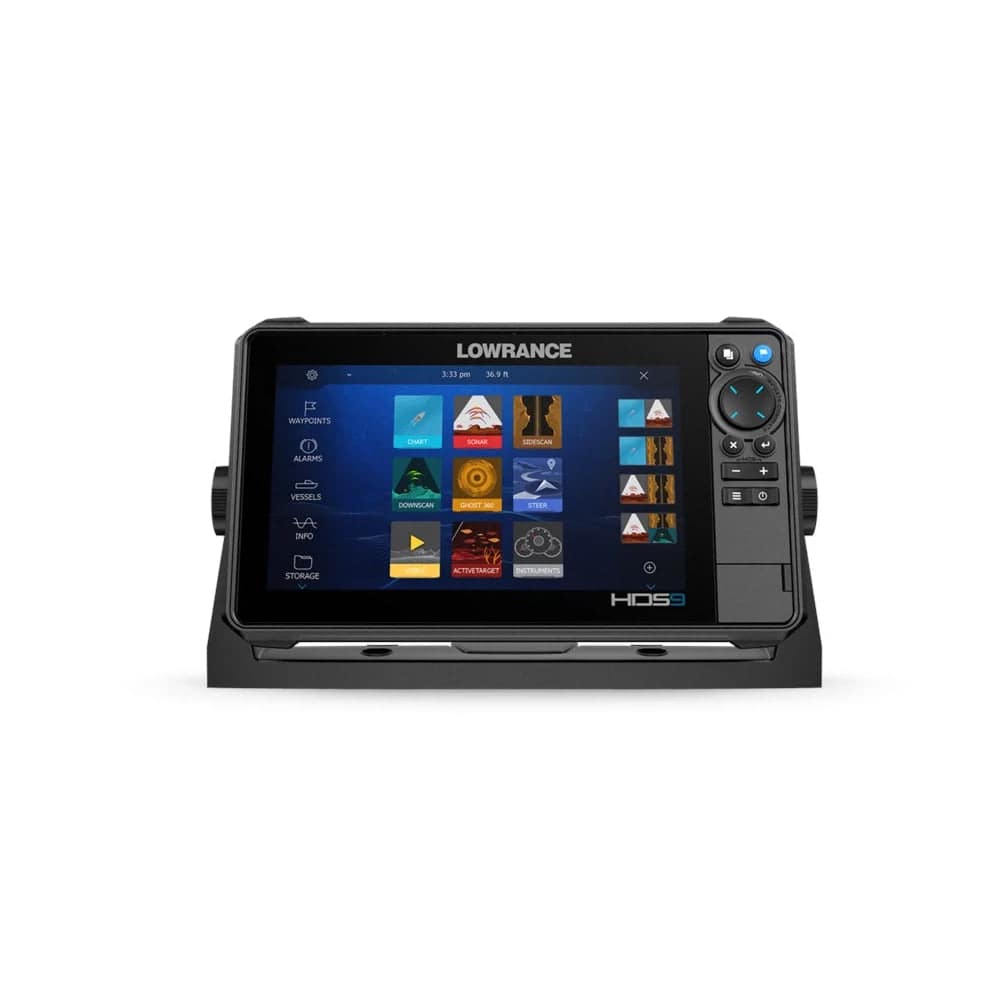

Lowrance HDS Pro 9

Item #: 4095
$ 1,699.99
$ 1,699.99
Retail Price:
Shipping calculated at checkout.
Retail price with upgrade options:
$ 1,699.99
The HDS Pro features a SolarMAX™ IPS HD Display that is viewable even in the brightest of light and with polarized sunglasses on. It also features a new faster processor so your chart can keep up even with the fastest of TT's now days!
  • SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
  • 9-inch display size
  • NMEA 2000®, Wireless and Bluetooth®, connectivity – plus smartphone notifications
These devices are intended for use in North and South America. Use outside of this region may be possible for an event, but if the race vehicle will primarily be outside of the America's, you will need to purchase a GPS from your local dealership. Contact us for help.



Specs

Manufacturer SKU: 000-15996-001

  • Display
    Backlight ColorPure White LED
    Display Resolution1280x720
    Screen Brightness>1200 Nits
    Viewing Angles80° top/bottom, 80° left/right

  • SD Card Storage 2 micro SD cards up to 32GB
  • Internal Storage 8.0 GB Internal
  • Video Output: No
  • Video Input: Composite video RCA - single channel via optional adaptor
  • Power Consumption max 2.9A @ 13.8VDC with Full Backlight
  • Environment
    Humidity IEC 60945Damp Heat 150°F (66°C) at 95% Relative Humidity (48 hrs)
    Operating Temperature Range5°F to 131°F (-15°C to 55°C )
    Shock Vibration 100,000 cycles of 20 G
    Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
    Waterproof rating IPX7 with card door closed
  • Physical
    Compass Safe 65 cm (2.1 ft)
    Dimensions W x H x D11.02" (280 mm) x 6.56" (166.7 mm) x 3.06" (77.7 mm)
    Mounting Type Gimbal BracketFront Dash Flush MountRear Dash Flush Mount
    Weight 3.06 lb (1.39 kg)
